The 2D cell inspector is a new feature in PoreXpert compared to its predecessor Pore-Cor RS, the 2D cell inspector allows you to investigate the migration of fluids such as water and visualise the movement layer by layer giving the user a visualisation representing a microtomed structure. The next figure shows the 2D cell inspector with a unit cell partially intruded with mercury represented by colouring the voids grey.

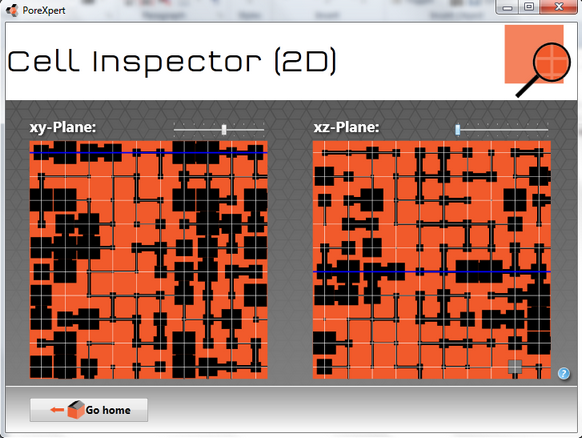

2D cell inspector showing the xy-Plane and xz-Plane above each plane is a slider to move through the structure. The blue line in each plane indicates where the respective levels. The solid phase structure is dependent on the material database properties.
