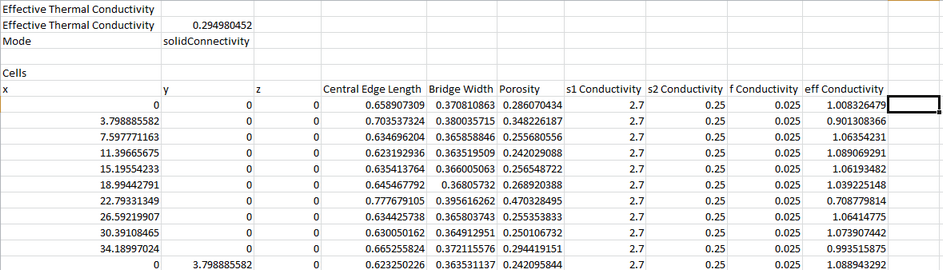

The CSV report for thermal conductivity, summarises all the parameters required to work out the three dimensional network thermal conductivity, with the effective thermal conductivity shown near the top of the next figure. The s1, s2 and f conductivity columns take their values from the thermal conductivity value in the materials database for the materials selected.



The name of this file will be filename_operationnumber_ConductivityOperation.csv, the default location for saving CSV files is in the PoreXpert folder in the Users documents folder.

The operation number corresponds to the position in the operation list with the first operation in the list starting at 0.
