The figure below is the simplex building page, this screen is displayed after the simplex has finished the fitting of the experimental data. The building operation can also be run in batch mode using either the most recent fit or the best available fit.

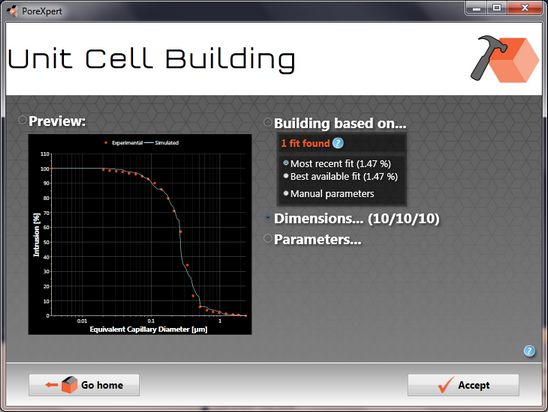

Figure showing the PoreXpert building page the screen shows the simulated fit compared with the experimental data on a logarithmic x -axis.



On the building screen you can choose to use the most recent fit or the best available fit by selecting the appropriate option in the expanded menu in the above figure. The dimensions menu is set to match the fitting parameters previously modelled by the simplex. The parameters menu displays the fitting parameters calculated by the simplex that PoreXpert will use to build your unit cell and explained in the fitting parameters topic.
