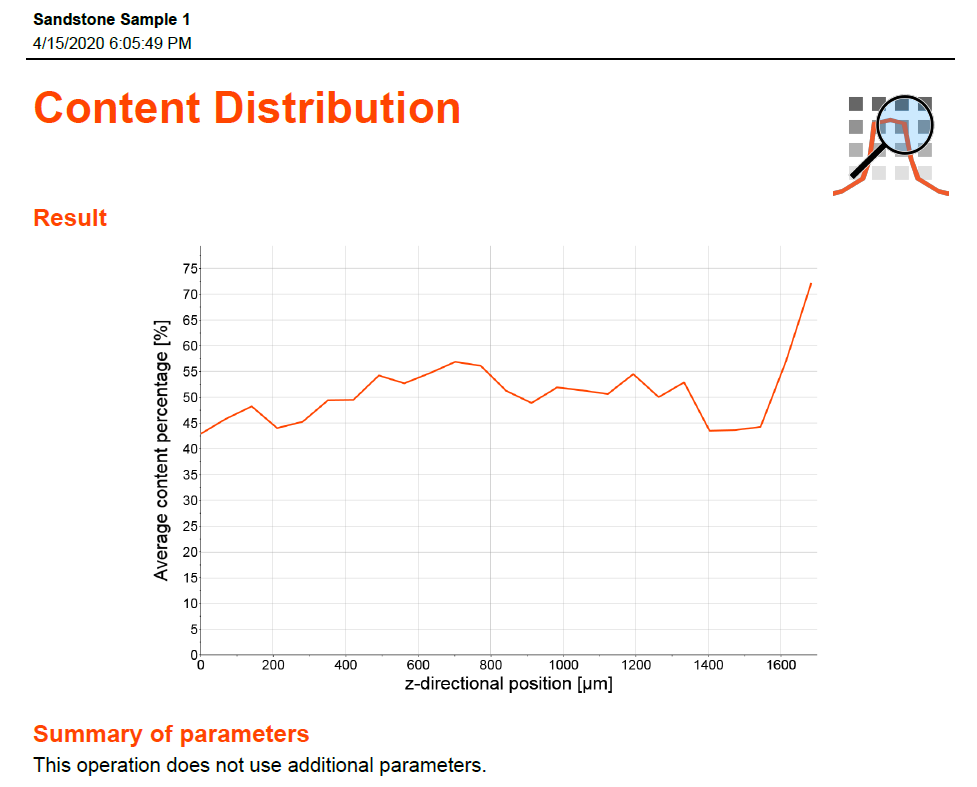

The following screenshot shows the pdf report page for the content distribution for sandstone sample 1, 1st stochastic generation, vertically banded structure, correlation level 0.36, after percolating to 50% by volume with mercury. Note the fairly even distribution, apart from the face nearest the mercury at maximum z, as the mercury will fill the largest vertical bands first, and has good access to all the layers from the top (maximum z) face.
