The unit cell is one of the output methods within PoreXpert, it allows you to visualise a two dimensional or three dimensional representation of your data in virtual reality. The virtual reality viewers "Cell Inspector" and "Porextract" have different functions and are explained in subsequent sections. The unit cell is one of the outputs available for the following operations.



When you double click on a building operation, a fluid uptake operation or a diffusion operation in the operations list the following screen is displayed which allows you to choose which viewer you want to use to view your unit cell.

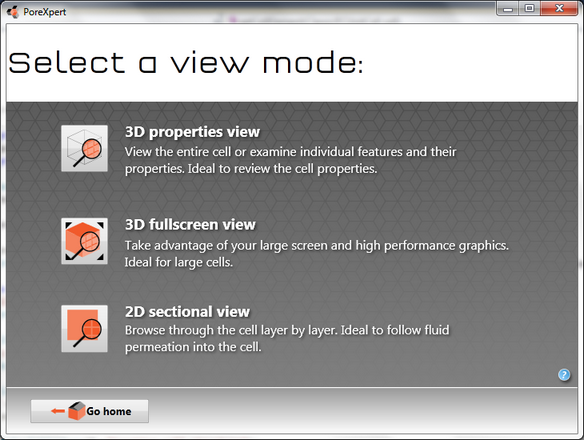

Unit cell viewer choice screen.
