The Materials database is a new feature in PoreXpert compared with its predecessor Pore-Cor Research Suite. The materials database allows the user to select a built in material such as calcium carbonate. The software then uses the material properties to perform calculations that depend on the properties of the solid material such as Thermal Conductivity. The materials in the database include the temperature and pressure when the properties are applicable. If you want to use different temperature conditions we recommend that you add the appropriate properties to the materials database as described below.



The references for any materials included in the materials database are included in the relevant material phase section. Users are able to add there own materials to the database for subsequent calculations.



To add a material to the database go to the PoreXpert File Menu and select the option "Edit Available Materials". The following screen will then be displayed. the left hand side of the screen displays a list of the current materials in the database. The right hand side shows the properties of the selected material and can be used to change the properties of materials in the database or to add new materials in the database.

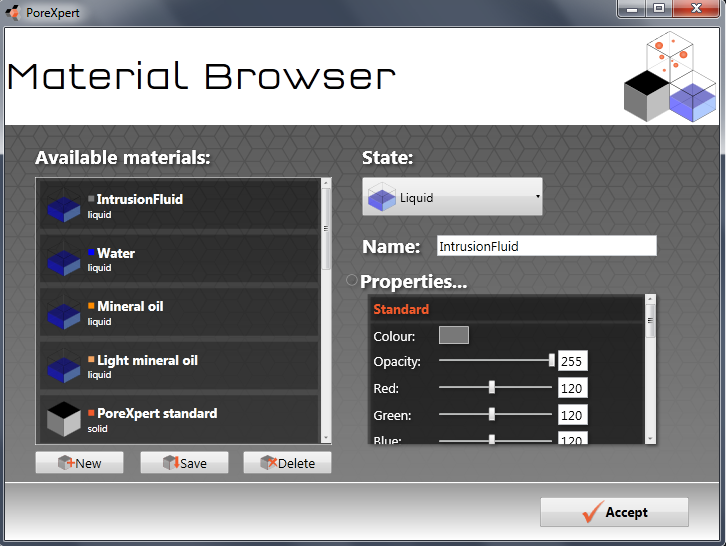

PoreXpert Material Browser



The PoreXpert material browser shown above allows you to add, edit, delete and copy materials from the materials database. If you click on New a new material will be added to the database called New Material. You are then able to add properties to this new material, you can change the state of the material from liquid to solid or gas, change the name to the material you want to add, assign a colour to the material so the Cell inspector and Porextract cell viewer can display the new material when you build a unit cell or wet a material with a new fluid. As you scroll down the properties list other parameters are listed all you need to do is fill in the parameters relevant to the state of the material and then click the save button.



The references for the properties of the materials can be found in the reference list at the end of the help documentation.



The properties of the materials in the database are not guaranteed to be correct and if you notice any material properties that need to be changed please contact us so subsequent versions of the materials database can be updated. Updated versions of the materials database will be made available on the website downloads page.
