PoreXtract is an application for the any Apple® device that is capable of running iOS 5, currently iPhone® 3GS or later, iPod® touch (3rd and 4th Generation) and the iPad®.



PoreXpert files can be transferred to PoreXtract for iOS using iTunes, email, or a file syncing program such as Dropbox.



PoreXtract opens either of the PoreXpert file formats and presents an operation list that have been previously analysed in PoreXpert. Figure 1 shows the operation screen in PoreXtract and some of the operations that can be performed in PoreXpert.



1a                                                                        1b

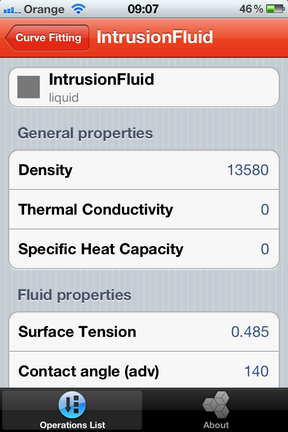

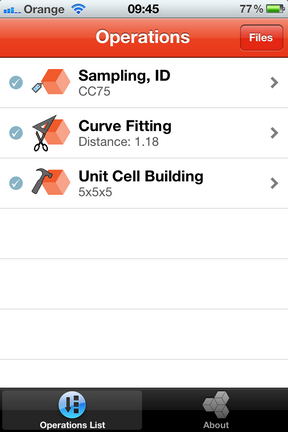

Figure 1a Operation List in Porextract. Figure 1b Material database screen for iOS displaying properties of the intrusion fluid.



The Porextract application allows you to view details about all the applications performed including viewing of the unit cell details of any materials used and the experimental data that has been analysed.



The following figures show screen shots of the cell inspector within Porextract for iOS. The capabilities of the cell inspector are limited by the specifications of the device viewing the structure. The three dimensional structure may have been simplified so the unit cell can be viewed on your mobile device.



2a                                                                        2b

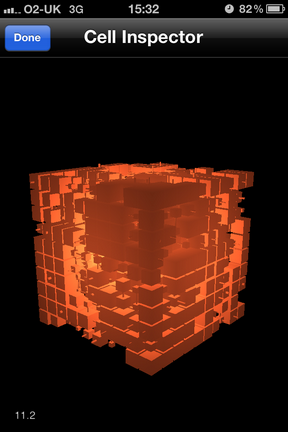

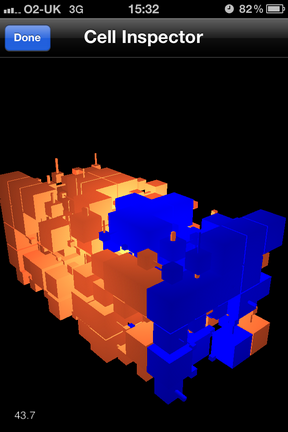

Figure 2a Cell Inspector screen displaying a 10 * 10 * 10 unit cell. Figure 2b Cell Inspector screen showing a partially wetted cuboidal unit cell.



Transferring files to PoreXtract using iTunes®

To transfer PoreXpert files from your computer to Porextract connect your iOS device to the computer using the USB cable provided with the iOS device. Select your device in the iTunes window and select the summary page. Scroll down to the bottom of the window and add the files to iTunes following the instructions provided by iTunes.
