Content Distribution

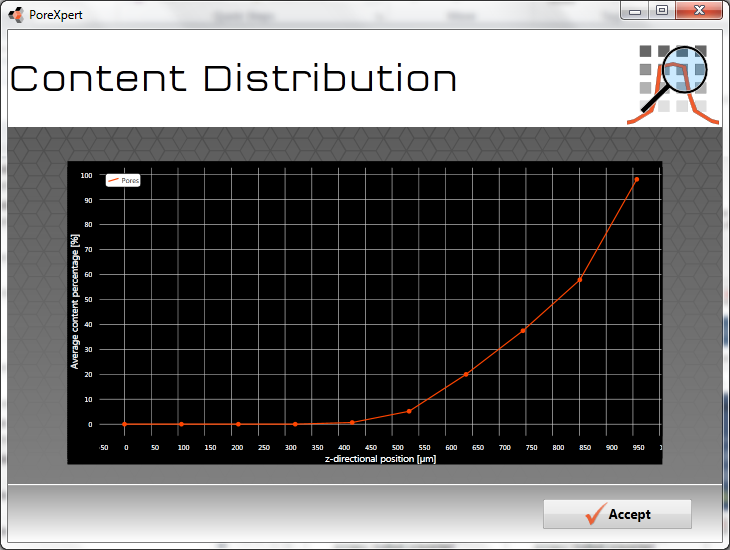

The content distribution analysis screen allows you to determine the saturation of the unit cell with a wetting or non-wetting fluid in the z-direction. The next figure shows the content distribution screen for a wetting simulation of sandstone after 5 milliseconds with the supersource being positioned at the bottom of the unit cell with no applied pressure.



content distribution page

Content distribution screen.
