PDF Permeability Report

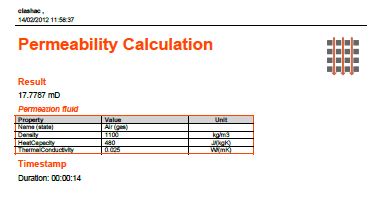

The permeability report, provides the permeability in milliDarcies for the Permeation fluid selected by the user on the permeability page. The properties of the permeation fluid are summarised beneath the result.



PDF permeability

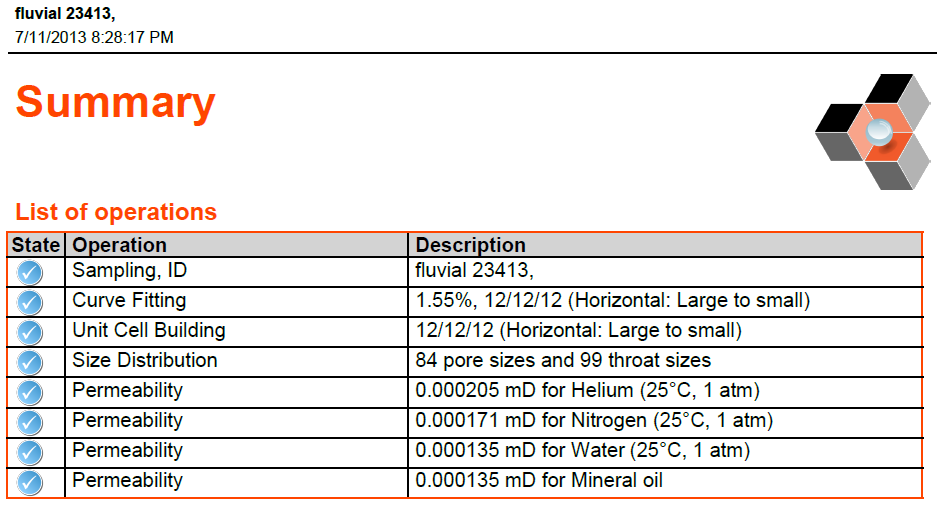

If the permeabilities with respect to several different fluids are simulated, the opening summary screen of the report compares the values.  The difference is due to the Klinkenberg effect.  The example below shows the effect evident for fluvial sandstone modelled with a small (12x12x12) unit cell.

reporting pdf permeability summary
