Modelling with PoreXpert

The output from PoreXY is formatted for direct and reliable modelling by PoreXpert.

Examples of PoreXpert output are shown below.

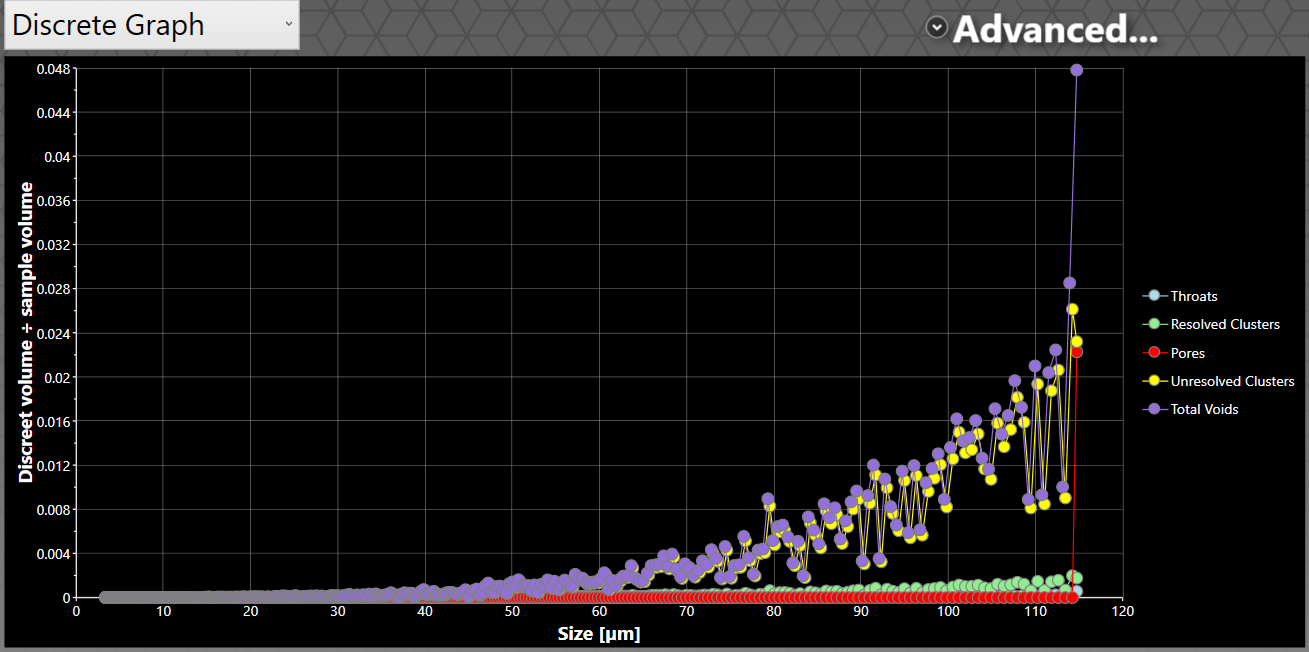

TypeB pore, throat and cluster size distribution

TypeB pore, throat and cluster size distribution

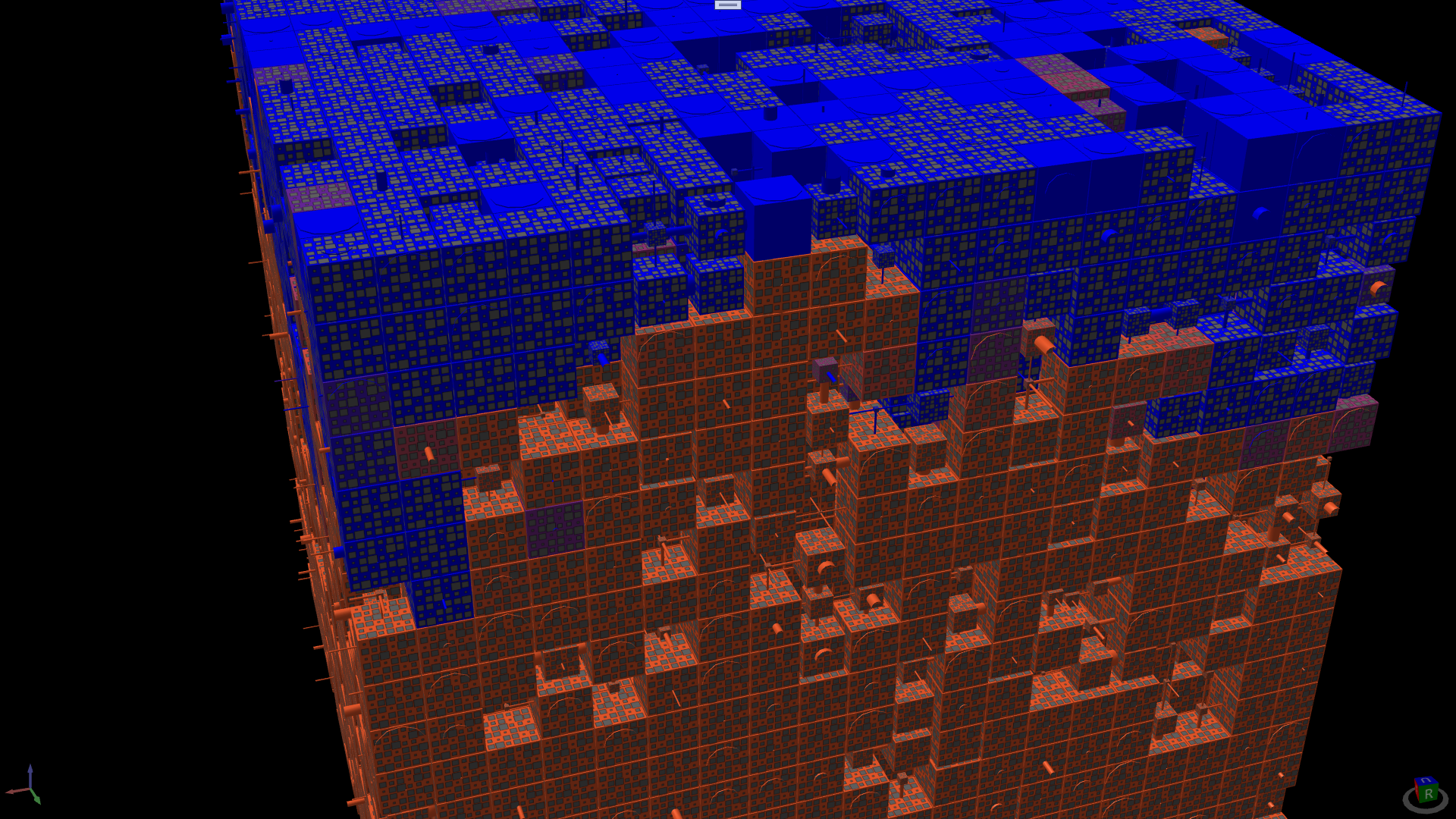

TypeB simulated void structure wetted to 20% by volume with water.  Fully saturated voids are shown blue, partialy saturated voids are purple, and clusters are stippled.

TypeB simulated void structure wetted to 20% by volume with water.  Fully saturated voids are shown blue, partialy saturated voids are purple, and clusters are stippled.
