Micromeritics V File Format

<< Click to Display Table of Contents >>

Navigation:  Experimental File Formats >

Micromeritics V File Format

The format for Micromeritics Autopore V format files can be automatically input for PoreXpert versions after 2.1.710, released in or after December 2022.



The following output options must be used, of the numerous available.

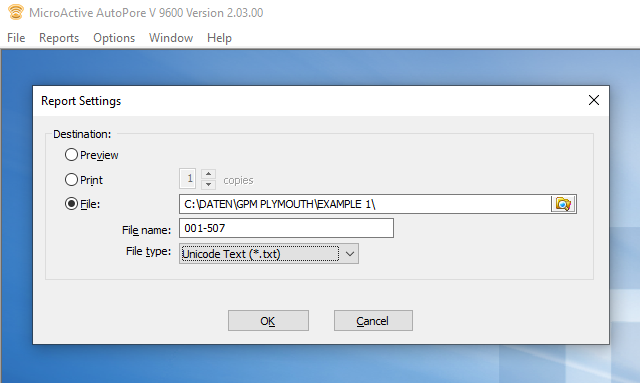

Reports/Start report/select the chosen sample file/click on Report and the following window will open



Micromeritics_Autopore_V_report_settings



Select File as the Destination and .txt as the File type.



The following window appears.



Micromeritics_Autopore_V_report_options



Only Summary and Tabular Report should be selected.

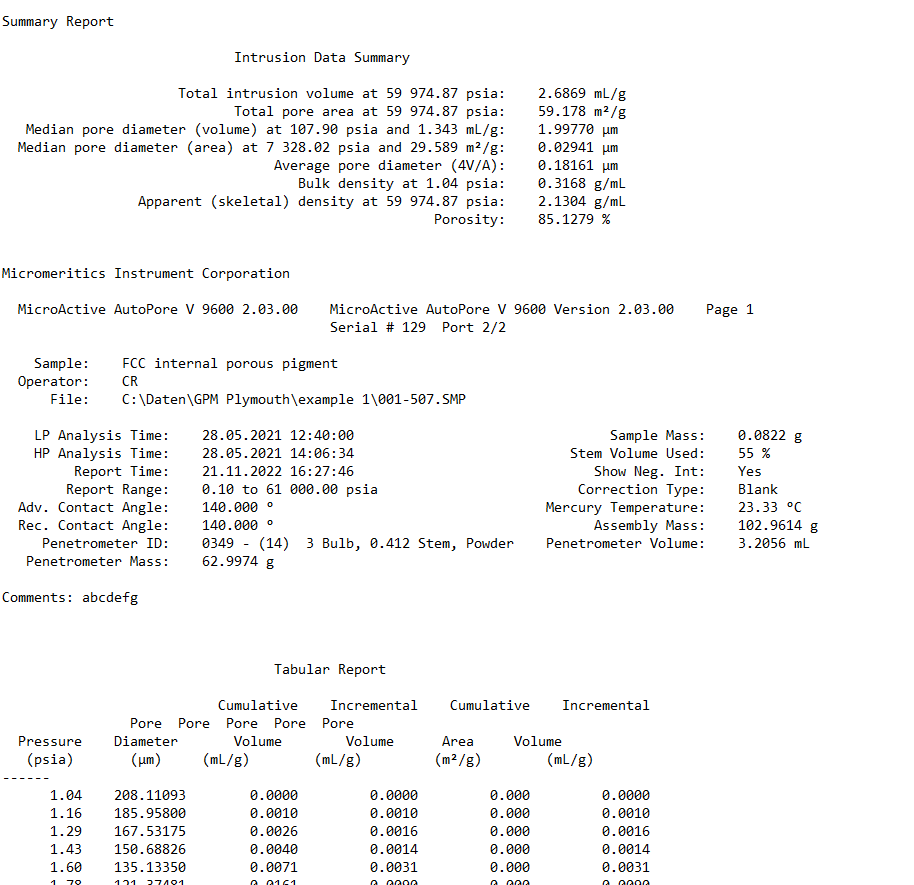

The text file is saved in the format exemplified below.



Micromeritics_Autopore_V_report_example_data
